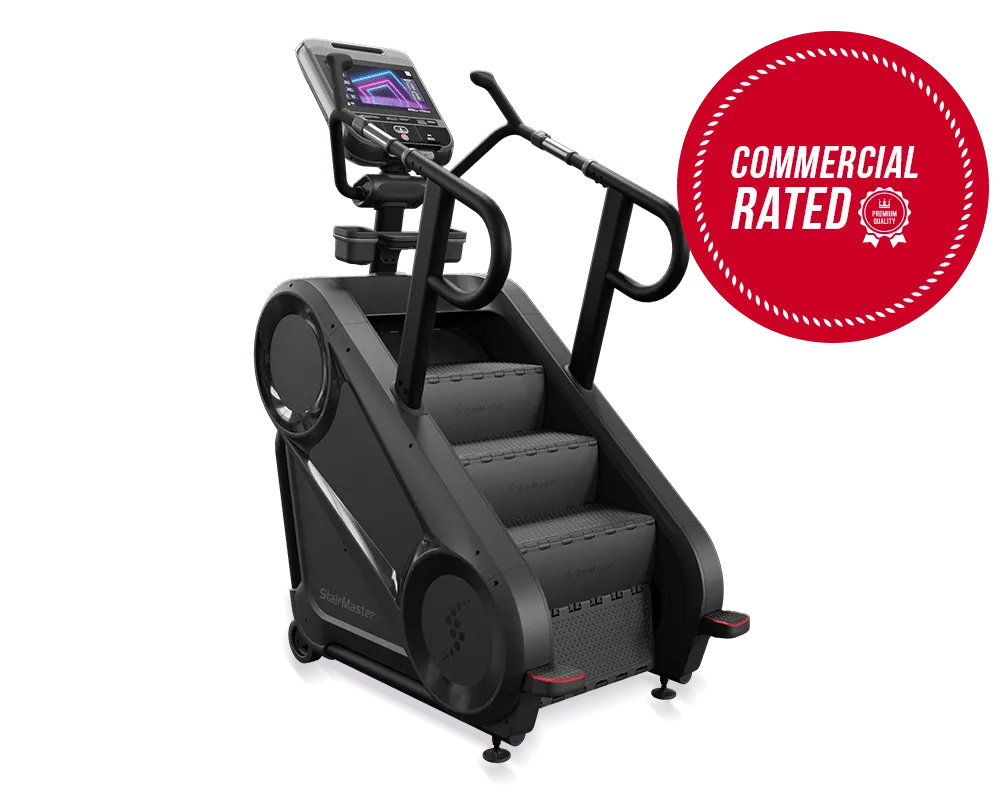

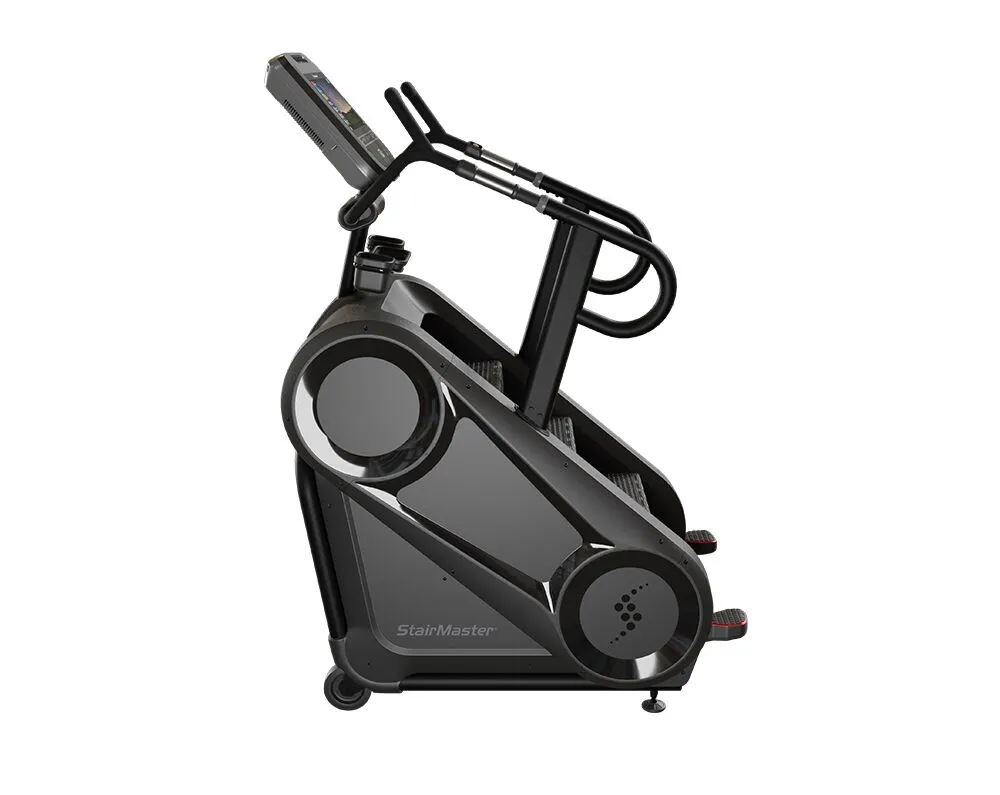

Introducing the all-new StairMaster 8Gx Gauntlet 8 Series Stepmill! This powerhouse product provides a superior combination of cardio and strength training with features like a durable, rust free polypropylene construction, ergonomic handrails to support multiple climbing positions and an all-new drive train that delivers smooth, quiet performance. Its combination of quality and innovation delivers a workout that’s quite literally a step up compared to everything else in the gym.
CONNECT TO APPLE WATCH OR SAMSUNG GALAXY WATCH
OpenHub LCD Consoles and 16″ Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.
DEVICE CONNECTIVITY
The re-imagined 16″ embedded touchscreen display adds a premium new look and experience to the already-great StairMaster cardio line. The new embedded console offers a new user interface design, SM20 HIIT Programming, RunTV and web-based media access for news, entertainment and workout motivation. With standard features like HDMI streaming, Bluetooth connectivity and TV tuner options, this is a display that has something for every user.
ABOUT STAIRMASTER
It was back in 1983 at the National Sporting Goods Association trade show that three American entrepreneurs first revealed the StairMaster brand to fitness culture. On display was none other than the iconic, the original, the globally recognized StairMaster 5000 which was basically nothing more than a never ending mobile and motorized staircase. Brilliant!
Between 1988 and 2010 the company had been owned by 7 different brands, the most recent of which is Core Health and Fitness. Each owner along the way added something of their own that has helped Stair Climber concretely situate itself in the global fitness industry. In fact, it’s one of the most recognized brand in nearly any gym in the western world.
| Warranty | |
| Frame: | 15 year |
| Parts: | 3 years |
| Labor and Wear Items: | 1 year |
| Specifications | |
| BASE FEATURES | |
| LENGTH: | 58in (147cm |
| WIDTH: | 34in (86cm) |
| HEIGHT WITH CONSOLE: | 80in (203) |
| STEP SURFACE: | 10in (25 cm) Deep x 22in (56cm) Width |
| STEP HEIGHT: | 8in (20cm) |
| STEP RATE: | 20 Levels ranging from 24-162 steps per minute |
| STEP UP HEIGHT: | 9in (23cm) |
| RECOMMENDED CEILING HEIGHT: | 10ft (305cm) |
| HEART RATE MEASUREMENT SYSTEM: | Telemetry and contact HR (Bluetooth with embedded display) |
| CONTROLS: | New handrail design features integrated speed and elevation controls, stop button and contact heart rate |
| DISPLAY: | Choose from LCD or 16″ OpenHub display option |
| ACCESSORIES: | Multiple bottle and accessory holders, LCD display pre-wired for 8 Series PVS entertainment, 800/900MHz receivers, and tablet holder |
| MAX USER WEIGHT: | 400lb (181kg) |
| DRIVE SYSTEM: | Generator |
| ELECTRICAL REQUIREMENTS: | 12 V/5 Amp power supply |
| ADDITIONAL FEATURES | Landmark Challenge |
| FRAME | |
| MATERIAL: | Powder Coated Steel Frame |
| STANDARD COLOR OPTIONS: | Matte Black (-60 black) |
| SHIPPING DIMENSIONS (BASE + DISPLAY): | 52in x 38in x 59in (133cm x 96cm x 150cm) |
| SHIPPING WEIGHT (BOXED): | 611lbs (277kg) |
FEATURES
StairMaster 8Gx Gauntlet 8 Series Stepmill Key Features:
- Choose from LCD, 10″ or 16″ OpenHub display options
- Includes the Landmark Challenge Program which allows users to climb well-known landmarks from around the world like the Eiffel Tower, Statue of Liberty and Taj Mahal. Standard console programs are also included
- Redesigned handrail system supports multiple climbing positions
- Integrated speed and stop controls for a better user experience
- Step Up Height: 9 in (23 CM)
- Step Surface: 10 IN (25 CM) deep x 22 IN (56 CM) wide
- Step Height: 8 IN (20 CM)
- Step Rate: 20 levels 24-162 Steps Per minute
- Bluetooth connectivity for user workout data tracking
- Telemetry and contact HR
- USB charging port
- HDMI streaming available with PVS and 16″ display
- Personal cooling fans create a more rewarding workout
- Multiple bottle and accessory holders
- LCD and 10″ displays pre-wired for 8 Series PVS entertainment, 800/900mHZ receivers, and tablet holder
- Service panel removes with 4 fasteners, allowing for easy access to drive train and electronics.
- Electrical requirements: 12V/5 Amp power supply
- Powder Coated Steel Frame
DISPLAY FEATURES
- Display Type: LCD Console standard or 15” OpenHub Embedded Touch Screen Console upgrade
- Standard Connectivity (either console): Bluetooth, ANT+, USB Port
- Additional Connectivity (15″ Touch Screen console ONLY): TV Tuner (Global), HDMI Port for video streaming via cable, Netpulse
- TV Compatibility: Yes, integrates with optional Personal Viewing Screen (PVS) with ATSC/NTSC Tuner
- Standard Workout Programs (either console) – Quick Start, Manual, Fat Burner, Calorie Burner, Speed Intervals, Custom Intervals, Random Intensity, Heart Rate Intervals, Calorie Goal, Heart Rate Zone Trainer
- Additional Workouts (15″ Touch Screen console ONLY): Landmark Challenge Program where users climb well known landmarks from around the world like the Eiffel Tower, Statue of Liberty, and the Taj Mahal
- Fitness Test(s): Multi-stage Fit Test , CPAT Fire Fit Test and WFI Stepmill Test
- Console Accessories: Reading rack, dual water bottle holders and accessory tray
- Additional Features: Integrated Service Light, Personal Fan

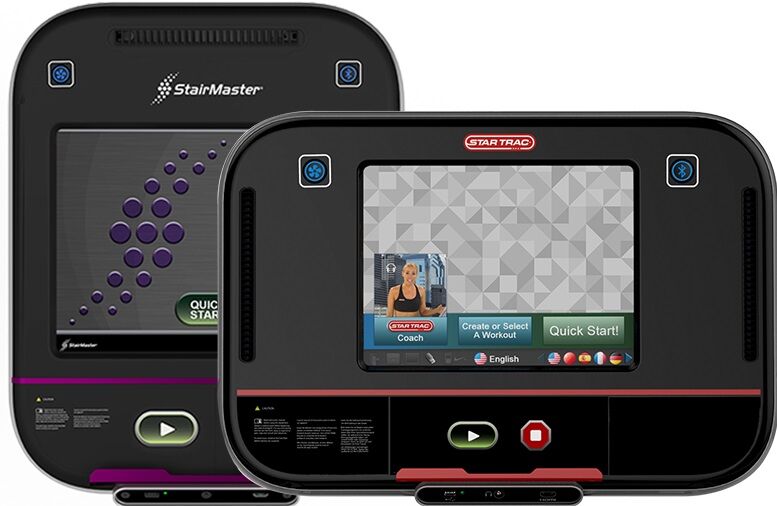

OPTIONAL OpenHub™ 15″ Embedded Touch Screen Console Advantages
- Entertainment: Browse the web or stream music and video directly to the OpenHub™ console from your own phone or tablet. You can also watch television on the oversized 15” embedded screen (or by adding the optional personal viewing screen to the standard LCD model).
- Asset Management: OpenHub™ can utilize various 3rd party asset management systems that allow facility operators to track equipment use and stay on top of maintenance. If your facility already utilizes an asset management solution, chances are OpenHub™ can communicate with it too.
- Workout Data Tracking: Personal fitness data tracking is available via Bluetooth connection. OpenHub™ consoles can push data to personal smart devices, connecting users with a world class data ecosystem.
- Competition & Games: Group Display functions can be used for a variety of competition and games. Bluetooth and Ant+ signals support data collection and display by 3rd party partner products.
- Club Solutions: OpenHub™ offer tons of features and solutions to meet the unique needs of every facility. The flexibility of the console allows for additional features to be added at any point, meaning you can get and pay for what you want, when you want it. No other manufacturer offers the affordable range of connectivity as StairMaster.

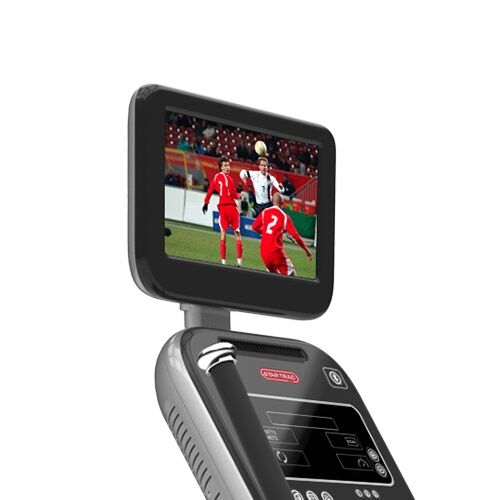

OPTIONAL 15.6″ Personal Viewing Screen (for LCD Console ONLY):
The 8-Series LCD Display is pre-wired to accept an add-on 15.6″ HD Personal Viewing Screen from MYE Entertainment. The PVS mounts seamlessly to the product, and an integrated control keypad inserts into the front of the cardio display for easy control. With the 8-Series, the PVS includes an HDMI port to support streaming from user’s personal device to screen.
CONSOLE OPTIONS

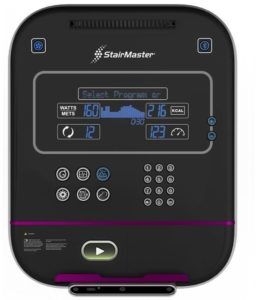

DISPLAY: Standard LCD Console (included)
DISPLAY TYPE: Static LCD
MULTI-LANGUAGE OPTIONS: Yes
PRE-PROGRAMMABLE WORK OUTS: Yes, 14+
QUICK START OPTIONS: Yes, single button start options
TV TUNER ENABLED: No
ETHERNET AND WIFI ENABLED: No
BLUETOOTH DATA TRACKING/APP CONNECTIVITY: Yes
BLUETOOTH HEADPHONES: No
BLUETOOTH HEART RATE: No
APPLE GYMKIT/SAMSUNG GALAXY WATCH CONNECTIVITY: Yes
RUNTV INTEGRATED WORKOUT VIDEOS: No
EGYM COMPATIBLE: No
INTEGRATED WEB-BASED APPS: No
CUSTOMIZABLE HOME SCREEN: No
HDMI STREAMING: Yes, HDMI streaming available with PVS option; cables not included
USB:USB port for software updates and device charging; cables not included
RFID: No
IPTV/SET TOP BOX COMPATIBLE: Yes, with PVS
ANT+ FOR GROUP DISPLAY: Yes
PERSONAL FAN: Yes, programmable auto start
ASSET MANAGEMENT: Ecofit Optional
TABLET HOLDER: Integrated front, optional top add-on
PVS: Optional
800/900 MHZ RECEIVER: Optional

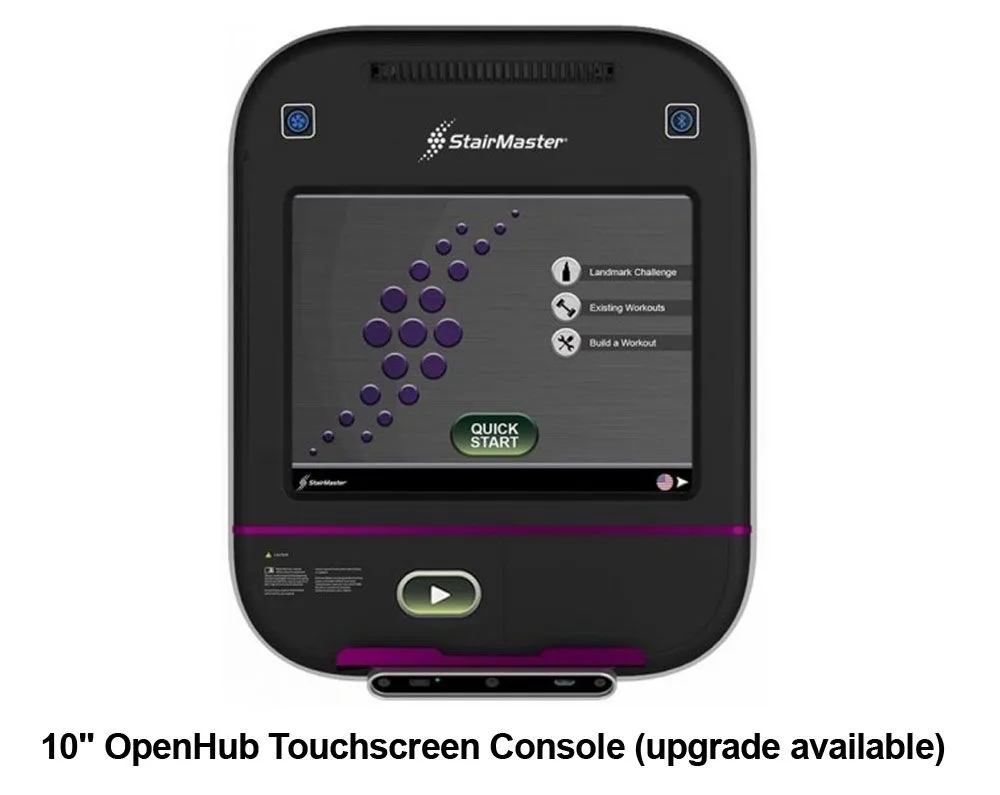

DISPLAY: 10″ OpenHub Touchscreen Console (upgrade available)
DISPLAY TYPE:Resistive Touchscreen
MULTI-LANGUAGE OPTIONS: Yes
PRE-PROGRAMMABLE WORK OUTS: Yes, 11+
QUICK START OPTIONS: Yes, single button start options
TV TUNER ENABLED: No
ETHERNET AND WIFI ENABLED: No
BLUETOOTH DATA TRACKING/APP CONNECTIVITY: Yes
BLUETOOTH HEADPHONES: No
BLUETOOTH HEART RATE: No
APPLE GYMKIT/SAMSUNG GALAXY WATCH CONNECTIVITY: No
RUNTV INTEGRATED WORKOUT VIDEOS: No
EGYM COMPATIBLE: No
INTEGRATED WEB-BASED APPS: No
CUSTOMIZABLE HOME SCREEN: No
HDMI STREAMING: Yes, HDMI streaming available with PVS option; cables not included
USB:USB port for software updates and device charging; cables not included
RFID: No
IPTV/SET TOP BOX COMPATIBLE: Yes, with PVS
ANT+ FOR GROUP DISPLAY: Yes
PERSONAL FAN: Yes, programmable auto start
ASSET MANAGEMENT: Ecofit Optional
TABLET HOLDER: Integrated front, optional top add-on
PVS: Optional
800/900 MHZ RECEIVER: Optional
DISPLAY: 15″ OpenHub Touchscreen Console (upgrade available)
DISPLAY TYPE: Capacitive Touchscreen
MULTI-LANGUAGE OPTIONS: Yes
PRE-PROGRAMMABLE WORK OUTS: Yes, 16+
QUICK START OPTIONS: Yes, single button start options
TV TUNER ENABLED: Yes (Global tuner options)
ETHERNET AND WIFI ENABLED: Yes
BLUETOOTH DATA TRACKING/APP CONNECTIVITY: Yes
BLUETOOTH HEADPHONES: Yes
BLUETOOTH HEART RATE: Yes
APPLE GYMKIT/SAMSUNG GALAXY WATCH CONNECTIVITY: Yes
RUNTV INTEGRATED WORKOUT VIDEOS: Yes
EGYM COMPATIBLE: Yes
INTEGRATED WEB-BASED APPS: Yes
CUSTOMIZABLE HOME SCREEN: Yes
HDMI STREAMING: Yes; cables not included
USB: USB port for software updates and device charging; cables not included
RFID: Optional
IPTV/SET TOP BOX COMPATIBLE: Yes, add-on accessories required
ANT+ FOR GROUP DISPLAY: Yes
PERSONAL FAN: Yes, programmable auto start
ASSET MANAGEMENT: Ecofit Optional
TABLET HOLDER: Integrated front
PVS: No
800/900 MHZ RECEIVER: No
Burn Body Fat, enhance your lean muscle mass, and amplify your endurance! with the StairMaster Gauntlet
Building on 30 years of experience and proven performance, the StairMaster 8Gx Gauntlet 8 Series Stepmill provides a superior combination of cardio and strength training in our most comfortable design ever. The machine features a deeper, wider step surface with durable, rust-free polypropylene construction and is now available with all three smart, affordable, flexible, OpenHub™ console options. Its combination of quality and innovation delivers a workout that’s head and shoulders above anything else in the gym.
Train Like a Spartan
The Spartan Race community is as resilient as they come and so it makes sense that Spartan would partner with the toughest workout in the gym. The Sprint, Super and Beast are a series of challenging Spartan races held each year around the world. The Spartan Training edition of the StairMaster 8Gx Gauntlet 8 Series Stepmill lets you challenge yourself against other racers, offering 6 race options, 3 different race lengths and one hell of a workout.
Strengths Benefits
The StairMaster 8Gx Gauntlet 8 Series Stepmill has adjustable speed and resistance. Using it requires simple balance, but significant strength. Calves, hamstrings, quadriceps and gluteal muscles are trained by lots of repetitions, which is known for building lean muscle and burning fat. Additionally, increasing the resistance of each stepping motion adds challenge. Core muscles are engaged by keeping your balance, which is more challenging on the Stepmill than other similar equipment.
Physiologic Benefits
The StairMaster 8Gx Gauntlet 8 Series Stepmill makes the user work hard without being hard on the user. The stepping motion incurs less impact than a treadmill, but with higher cardiovascular results. The thoughtfully designed handrails provide a safe grip should a misstep occur, but don’t allow you to cheat by leaning on them. The actual stepping motion forces the foot to remain mostly flat while climbing, versus the pedal format, which does not require the foot to leave the pedal. The stepping motion uses nearly every leg muscle.
StairMaster 8Gx Gauntlet Advance Options
Though the concept of stair climbing itself is basic to most of us, the StairMaster Gauntlet offers significantly more advanced options. The user can reap additional balance benefits by performing climbing backwards or laterally. Elite athletes have been known to add further challenge by stepping with weights strapped to their backs. Endurance is improved by consistently increasing the levels of speed and resistance on the new 8 Series Gauntlet.
The StairMaster 8 Gauntlet and StairMaster Stepper are legendary products that keep getting better over time. The latest product designs – from the look, to the feel to the amazing, new touch screen display – are easily the best in the company’s history, and these features truly make stairclimbing more interesting, more measureable and more motivating!
StairMaster 8G Gauntlet Cardiovascular Benefits
The StairMaster 8 Series Gauntlet is great for cardiovascular exercise due to its ability to raise your heart rate almost immediately. The level you set dictates workout intensity, but even at the lowest levels the heart is definitely getting a workout. Oneshot Fitness, a commercial fitness equipment provider, calls StairMasters “one of the toughest cardiovascular machines on the globe.”
